Garmin Ultra 122SV Marine GPS Navigation And Sonar Fish Finders
$97.99
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods

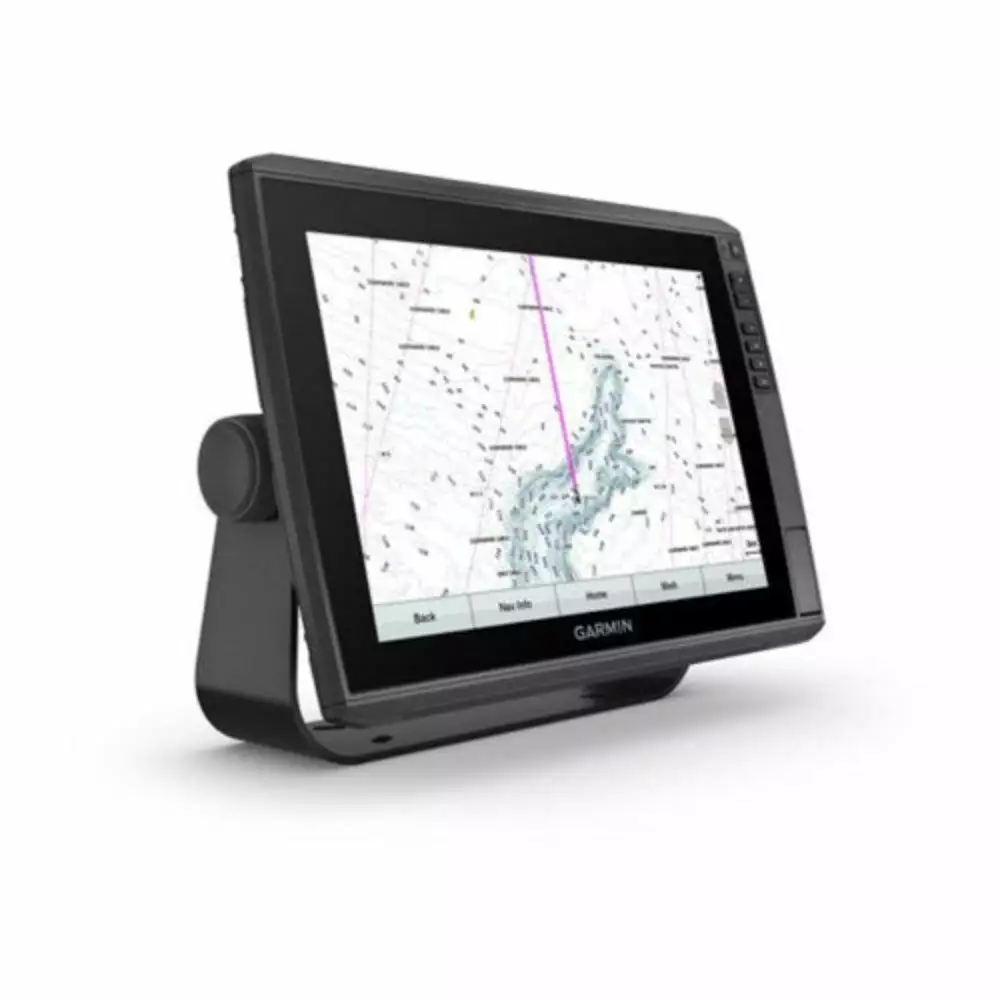

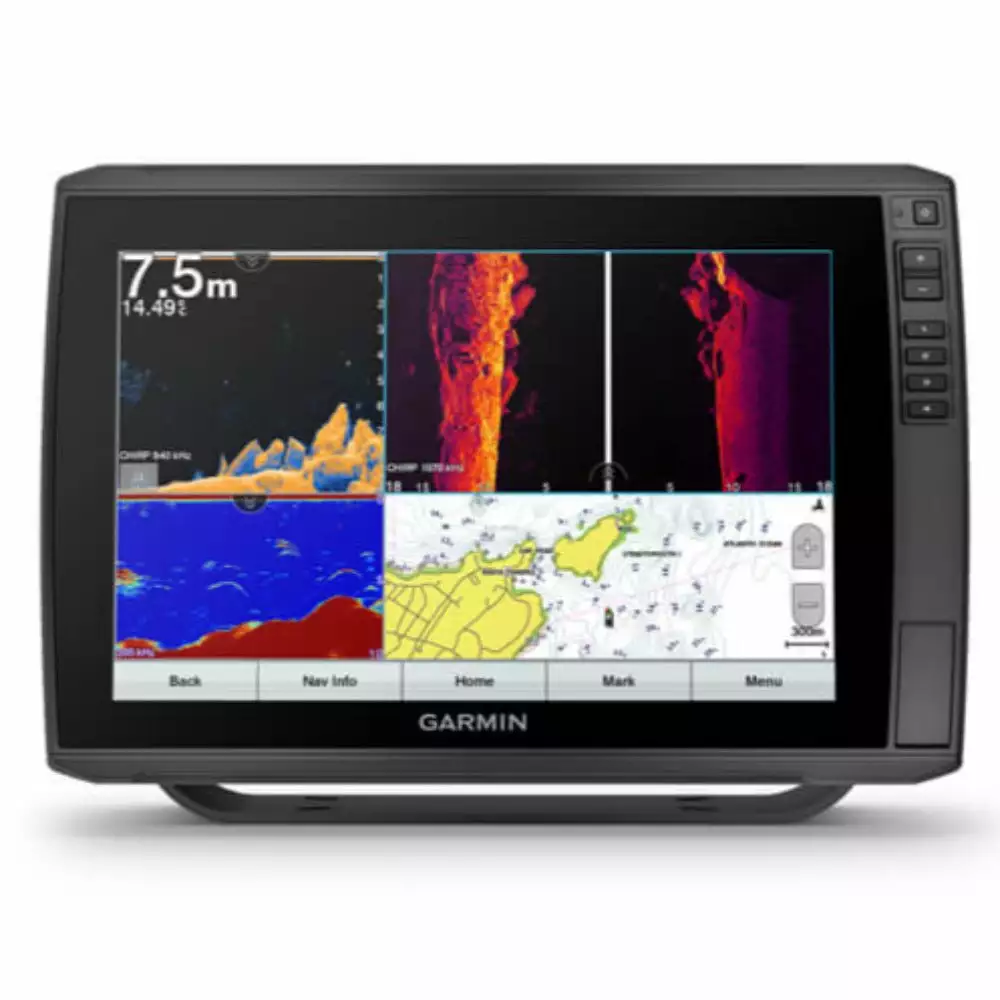

The sunlight-readable 12†touchscreen chartplotter/sonar combo features our worldwide base map, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
- The keyed-assist 12†touchscreen puts fishfinding know-how at your fingertips.
- See crisp images of structure and fish in stunning detail with optional transducer.
- Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps.
- Manage your marine experience from nearly anywhere with the ActiveCaptain® app.
- Connect your boat to share data, sonar and charts with your other devices.
- Explore your new favorite spot — create maps on the fly, and tailor them to fit your needs.

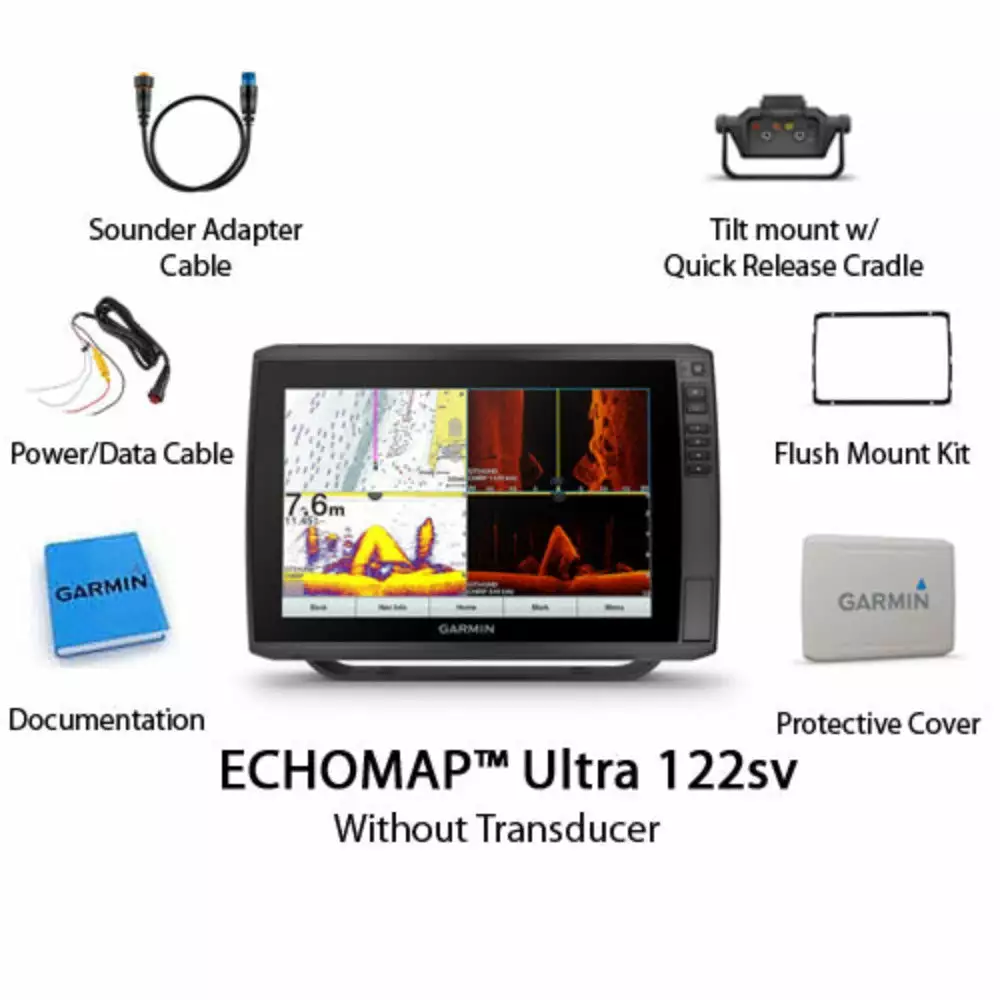

ECHOMAP Ultra 122sv supports a variety of Garmin transducers (sold separately), including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system.
Sonar Video
General | |
| PHYSICAL DIMENSIONS | 13.4″ x 9.0″ x 3.9″ (341 x 229 x 98 mm) |
|---|---|
| DISPLAY SIZE | 10.3†x  6.4â€; 12.1″ diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA IPS display |
| WEIGHT | 5.5 lbs (2.5 kg) |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
| POLARIZED SUPPORT | |
| POWER CONSUMPTION | 26 W |
| ANTENNA | Internal or external over NMEA 2000 |
| TRANSMIT POWER | 600 W (RMS) / 4,000 W (peak to peak) |
| RECEIVER | 10 Hz |
| GARMIN MARINE NETWORKâ„¢ PORTS | 2 (Large connector) |
Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSDâ„¢ cards |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
Outdoor Recreation | |
| TIDE TABLES | |
|---|---|
Chartplotter Features | |
| GARMIN SONAR COMPATIBLE | |
|---|---|
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | |
| SUPPORTS FUSION-LINKâ„¢ COMPATIBLE RADIOS | |
| GCVâ„¢ BLACK BOX SONAR SUPPORT | |
| ACTIVECAPTAIN COMPATIBLE | yes |
Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | |
|---|---|
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | |
| CLEARVÜ | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | |
| WATER TEMPERATURE LOG AND GRAPH | |
| SONAR RECORDING | |
| SONAR HISTORY REWIND | |
Connections | |
| NMEA 2000® COMPATIBLE | |
|---|---|
| TRANSDUCER PIN NUMBERS | 1 – LVS sonar, 1 – 12 pin scanning sonar |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| WIRELESS CONNECTIVITY | Yes |
